The graphical symbols provided are for use on operator controls and other displays on fire and rescue apparatus. These symbols are appropriate for vehicles designed to meet NFPA 1901 Standard for Automotive Fire Apparatus, NFPA 1906 Standard for Wildland Apparatus, and NFPA 414 Standard for Airport Rescue and Fire Fighting Vehicles.
Download the pdf file posted below to review Chapters 1-7 which cover: the scope, a list of reference documents used, definitions, a general overview, colors, a process for symbol adaption, and rules of use. Chapters 8-18 cover the complete list of the graphical symbols.
The artwork and information in this area gives the fire and rescue community an option for labeling common controls with a graphical representation of their function. This can be either in place of, or in addition to, the traditional text description. Some symbols have been adopted from already established sources, and many of the symbols are identical or similar to those being developed for use in Europe.
| Symbol Number
|
Download Symbol |
Graphical Symbol |
Symbol Description/Application |
Reference Number |
Reference Standard |
|
17.01 |
|
|
Panel Light
Use this symbol for the pump panel light control, instrument panel light control, or similar lighting that illuminates controls or gauges.
|
15.16 5012 |
SAE J1362 IEC 60417 |
|
17.02 |
|
|

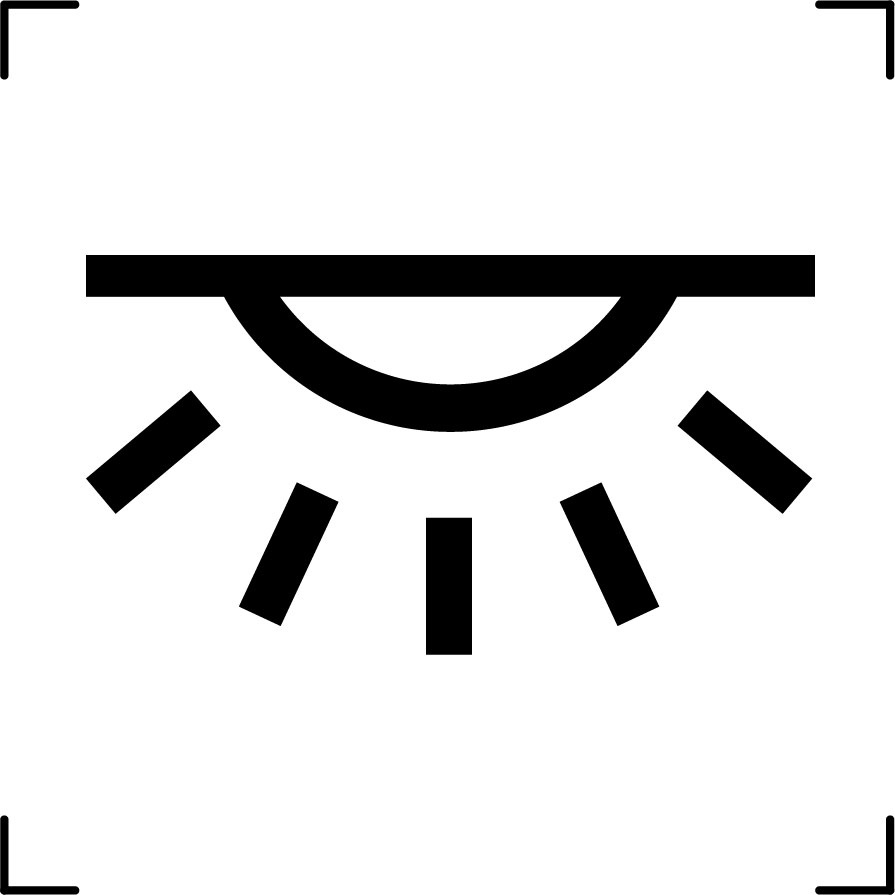

Dome Light
|
15.7 1421B |
SAE J1362 ISO 7000 |
|
17.03 |
|
|

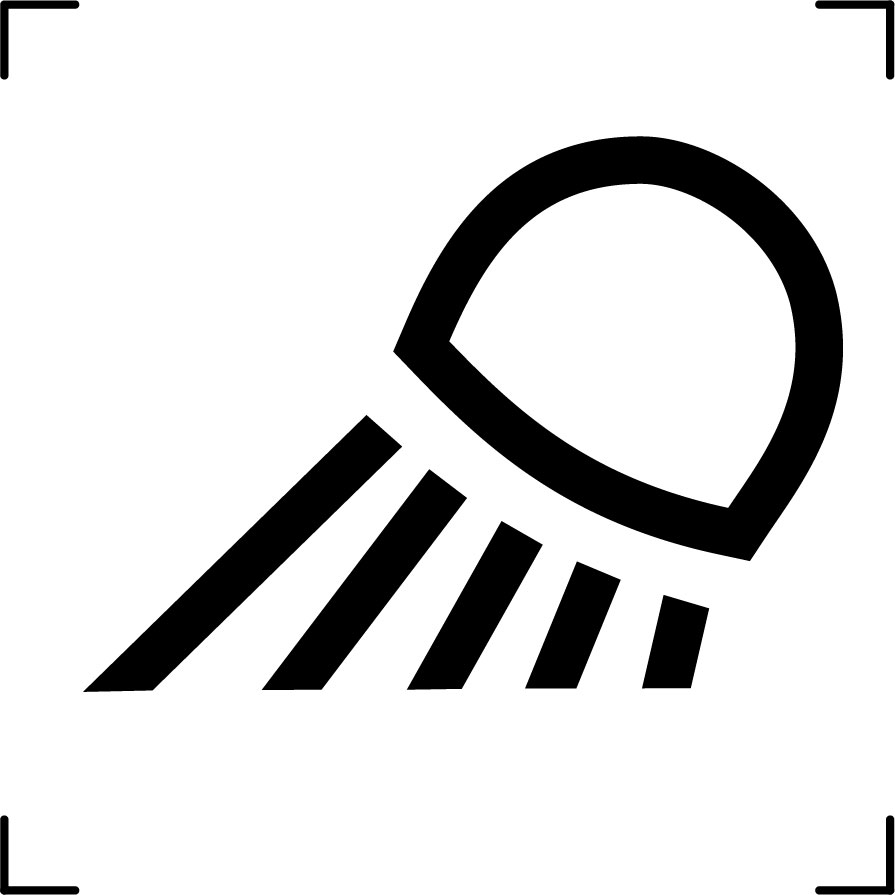

Flood Light
|
1204 |
ISO 7000 |
|
17.04 |
|
|
Adjustable Work Light
|
1142 |
ISO 7000 |
|
17.05 |
|
|
Reading Light
|
3.2.10 |
CEN 15989 |
|
17.06 |
|
|
Engine Compartment Light
|
None |
— |
|
17.07 |
|
|
Pump Compartment Light
|
None |
— |
|
17.08 |
|
|

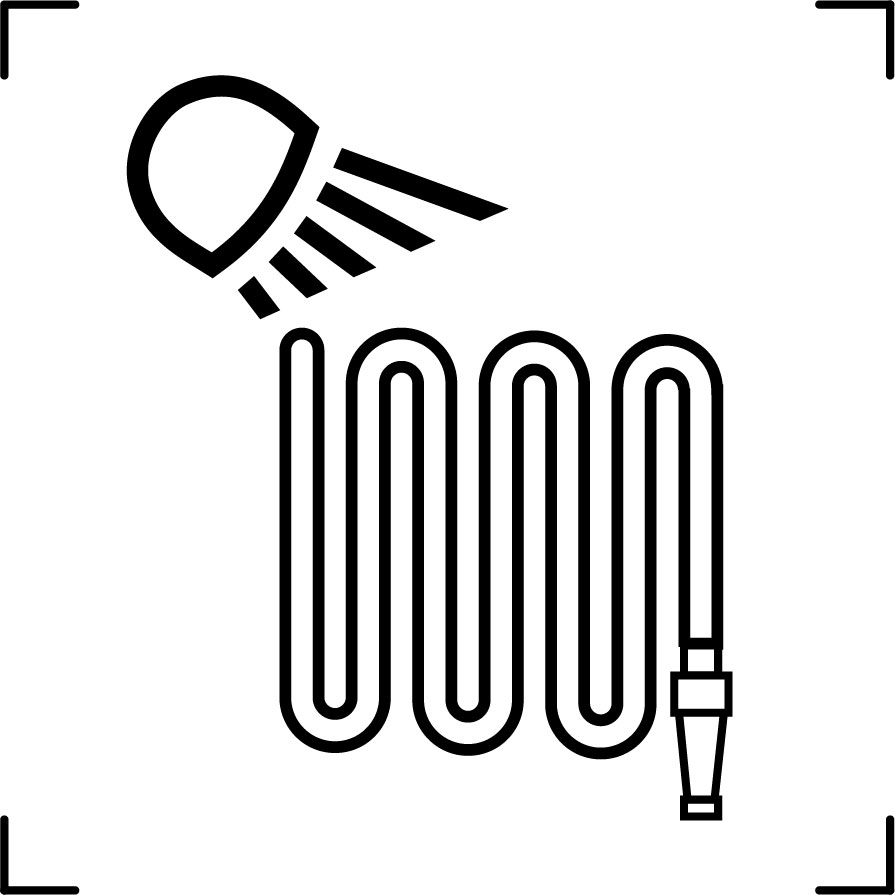

Hose Bed Light
|
None |
— |
|
17.09 |
|
|

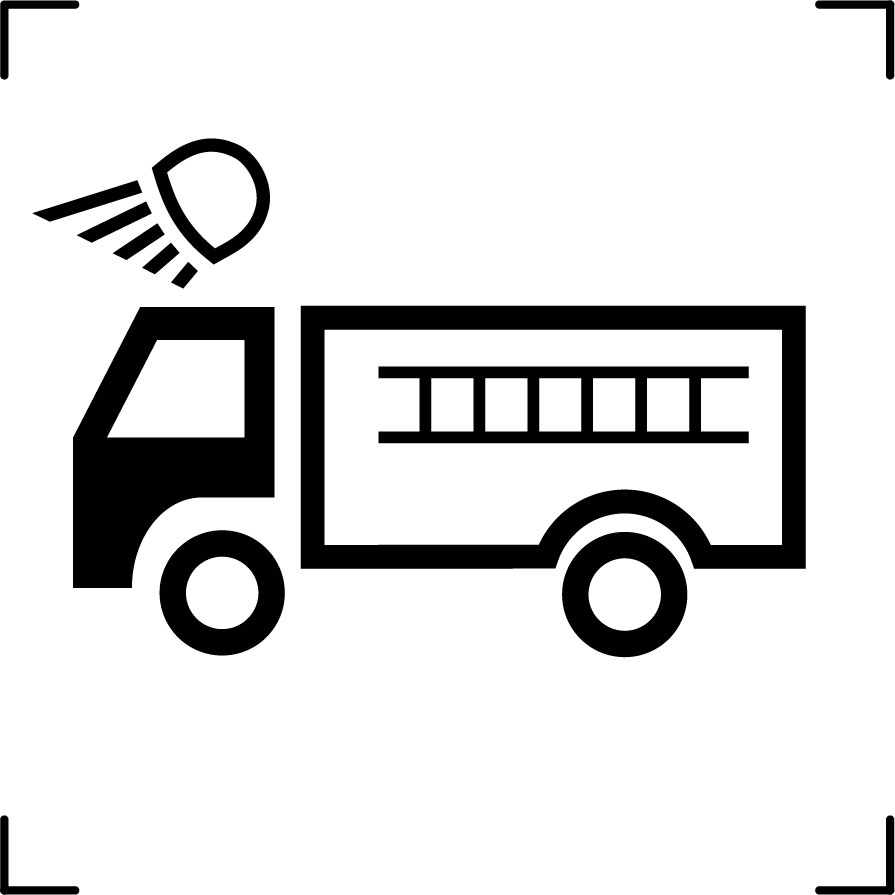

Front Scene Light
|
None |
— |
|
17.10 |
|
|
Rear Scene Light
|
None |
— |
|
17.11 |
|
|
Left Side Scene Light
|
None |
— |
|
17.12 |
|
|
Right Side Scene Light
|
None |
— |
|
17.13 |
|
|
Perimeter Ground Lights
|
None |
— |
|
17.14 |
|
|

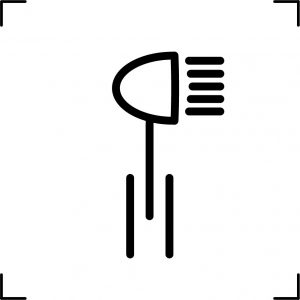

Elevating Light
|
None |
— |
|
17.15 |
|
|
Elevating Light Raise
|
None |
— |
|
17.16 |
|
|
Elevating Light Lower
|
None |
— |
|
17.17 |
|
|
Elevating Light Elevate
|
None |
— |
|
17.18 |
|
|

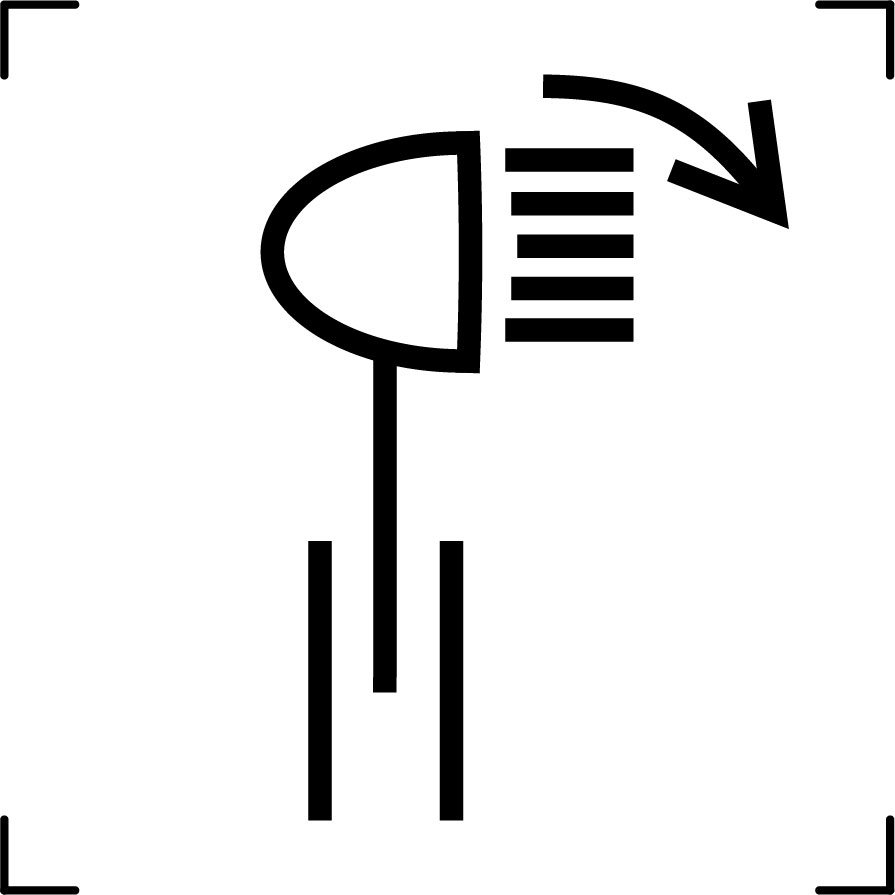

Elevating Light Depress
|
None |
— |
|
17.19 |
|
|

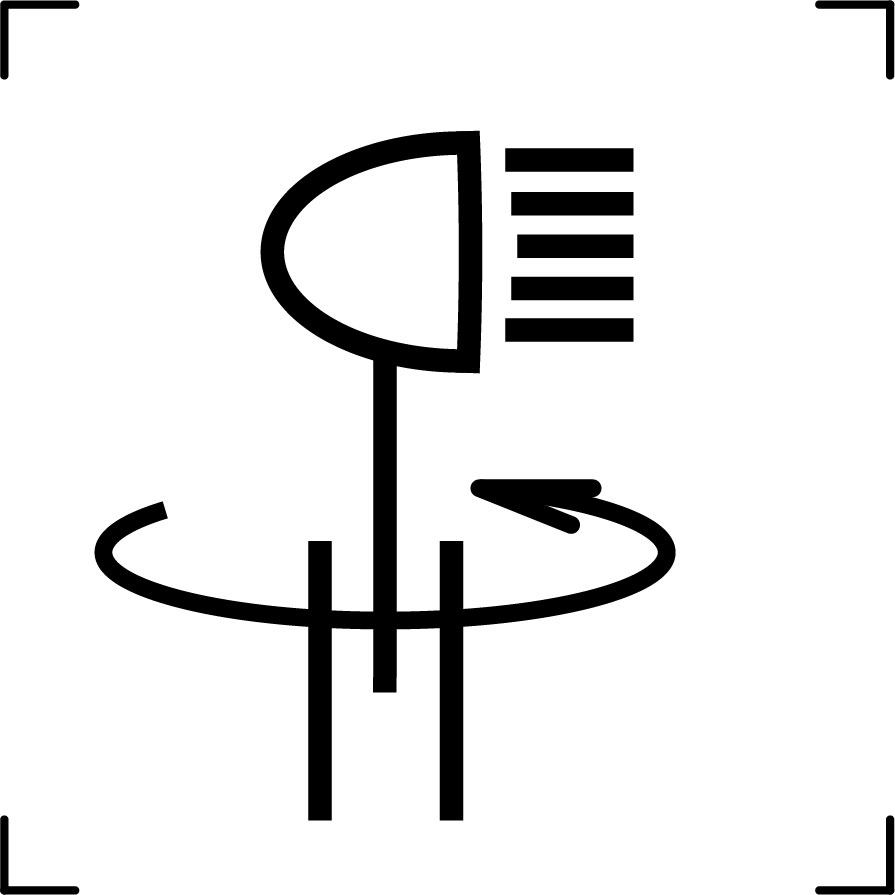

Elevating Light Rotate CCW
|
None |
— |
|
17.20 |
|
|
Elevating Light Rotate CW
|
None |
— |
|
17.21 |
|
|
Elevating Light Stow
Use this symbol regardless of how the light and mast physically fold up.
|
None |
— |
|
17.22 |
|
|
Aerial Base Lights
|
None |
— |
|
17.23 |
|
|
Aerial Tip Lights
|
None |
— |
|
17.24 |
|
|
Aerial Ladder Climbing Lights
|
None |
— |
|
17.25 |
|
|
Day-Night Switch
|
3.2.9 |
CEN 15989 |
|
17.26 |
|
|

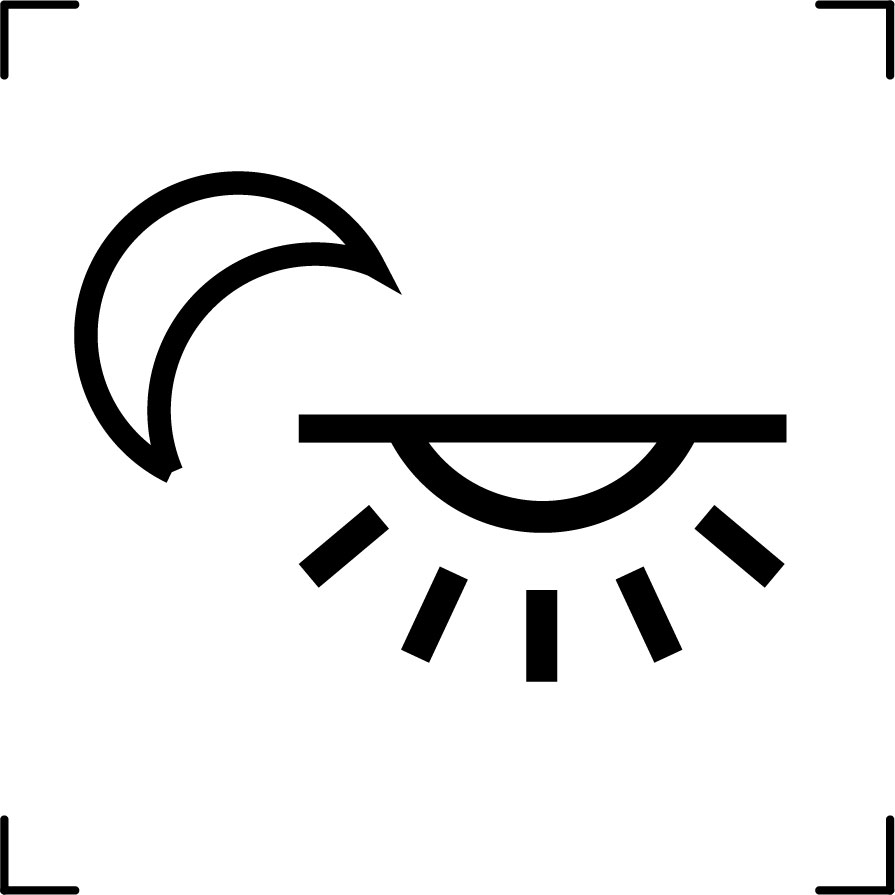

Low level interior illumination
To identify the control for the interior compartment lighting used to assist in maintaining the dark adaptation (night vision) of the operator while providing illumination to the interior.
|
2667 |
ISO 7000 |
|
17.27 |
|
|
Aerial Tip Light – Line Voltage
|
None |
— |
|
17.28 |
|
|
Aerial Tip Light – Low Voltage
|
None |
— |
|
17.29 |
|
|
Blocking Mode – Night
|
None |
— |
|
17.30 |
|
|

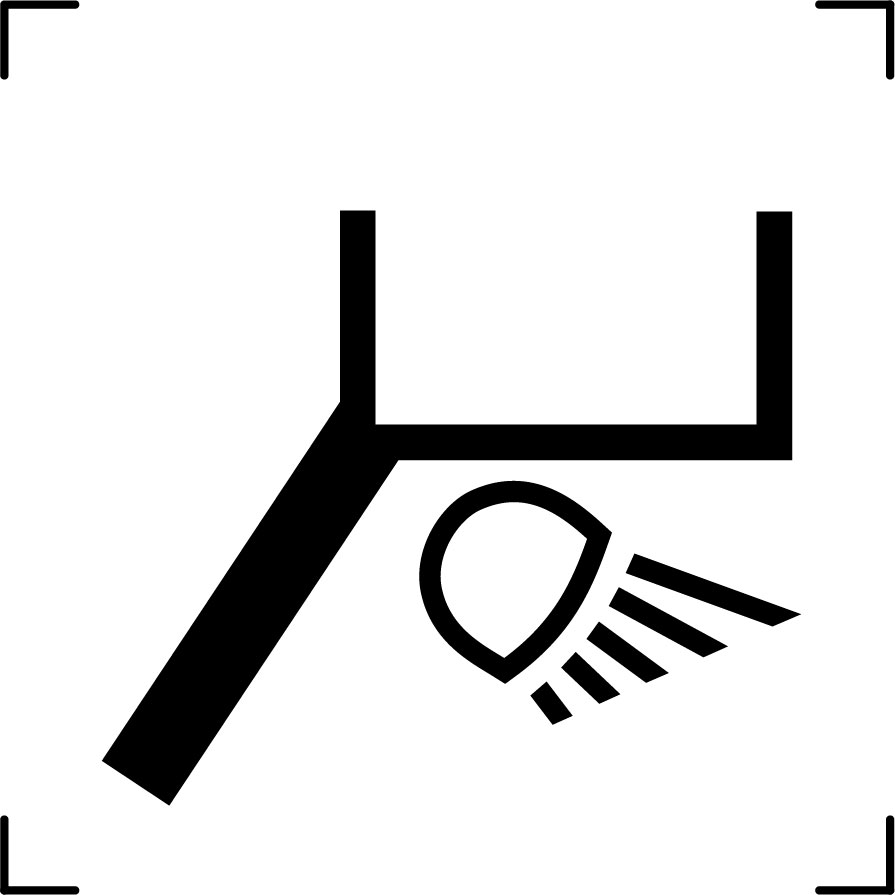

Platform Bucket Bottom Lights
|
None |
— |
|
17.31 |
|
|
Platform Bucket Front Lights
|
None |
— |
|
17.32 |
|
|
Platform Bucket Side Lights
|
None |
— |
|
17.33 |
|
|

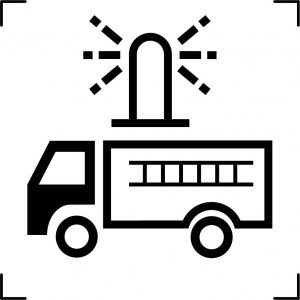

Emergency Master Lighting
(Preferred RED Switch Color)
|
None |
— |
|
17.34 |
|
|

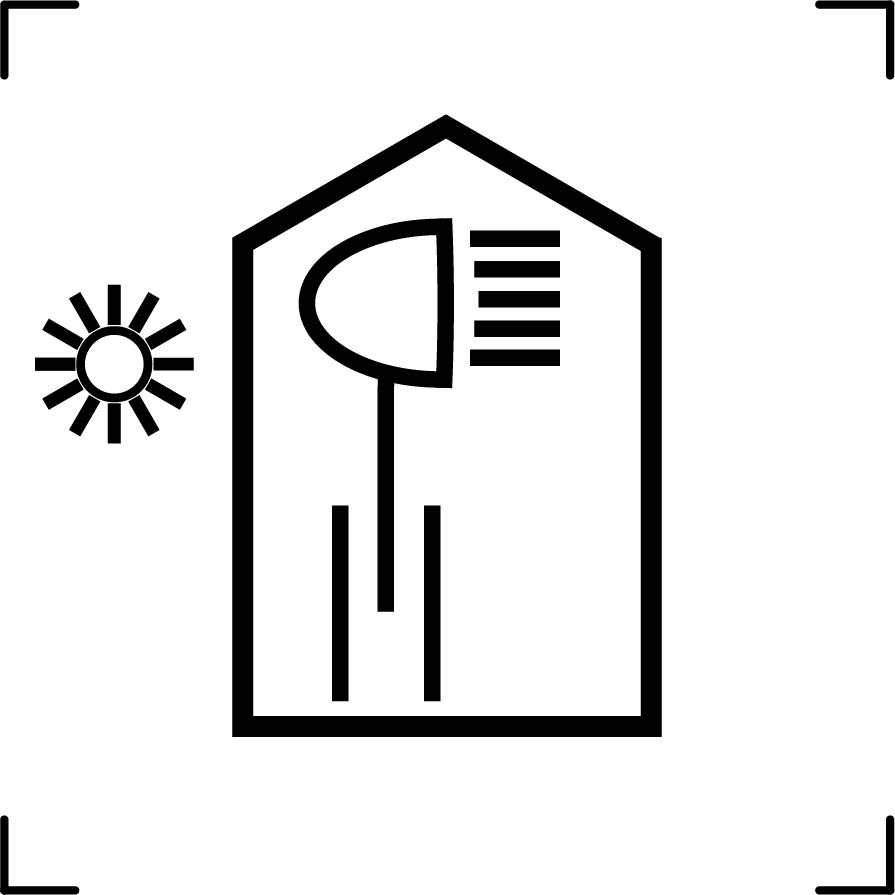

Elevating Light Behind Cab Left Side
|
None |
— |
|
17.35 |
|
|
Elevating Light Behind Cab Right Side
|
None |
— |
|
17.36 |
|
|
Elevating Light Rear Body Left Side
|
None |
— |
|
17.37 |
|
|

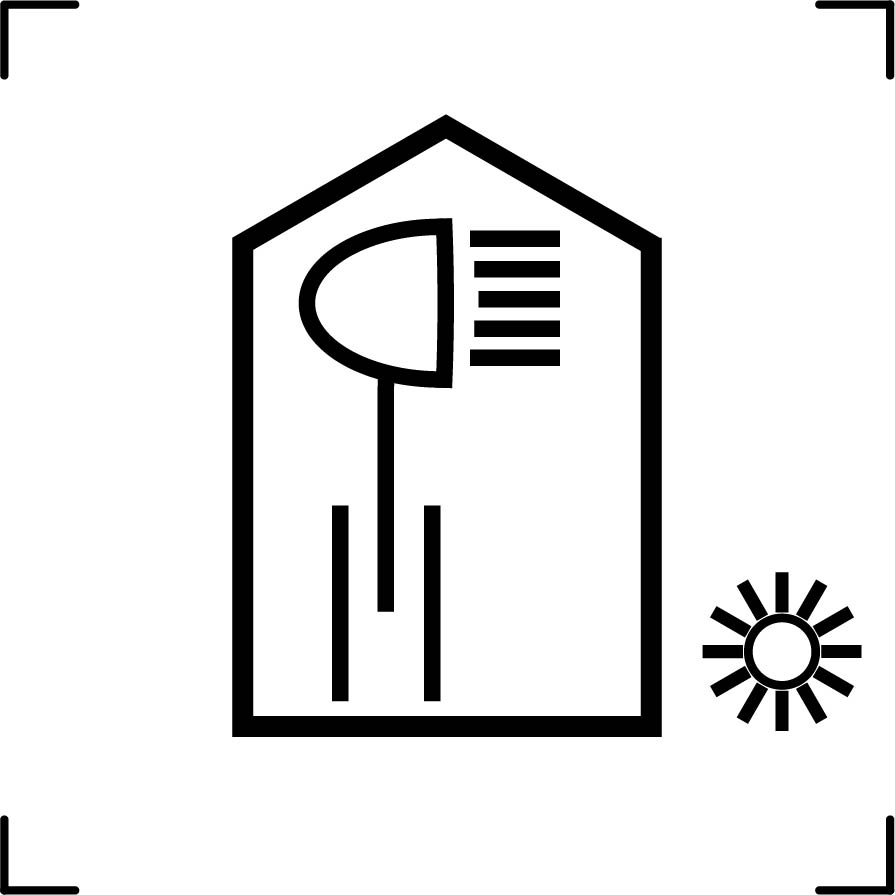

Elevating Light Rear Body Right Side
|
None |
— |
|
17.38 |
|
|

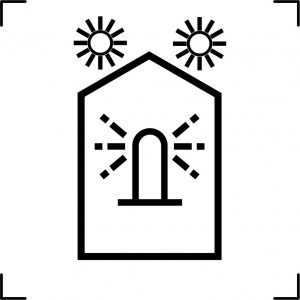

Warning Lights, Front
|
None |
— |
|
17.39 |
|
|
Warning Lights, Side
|
None |
— |
|
17.40 |
|
|

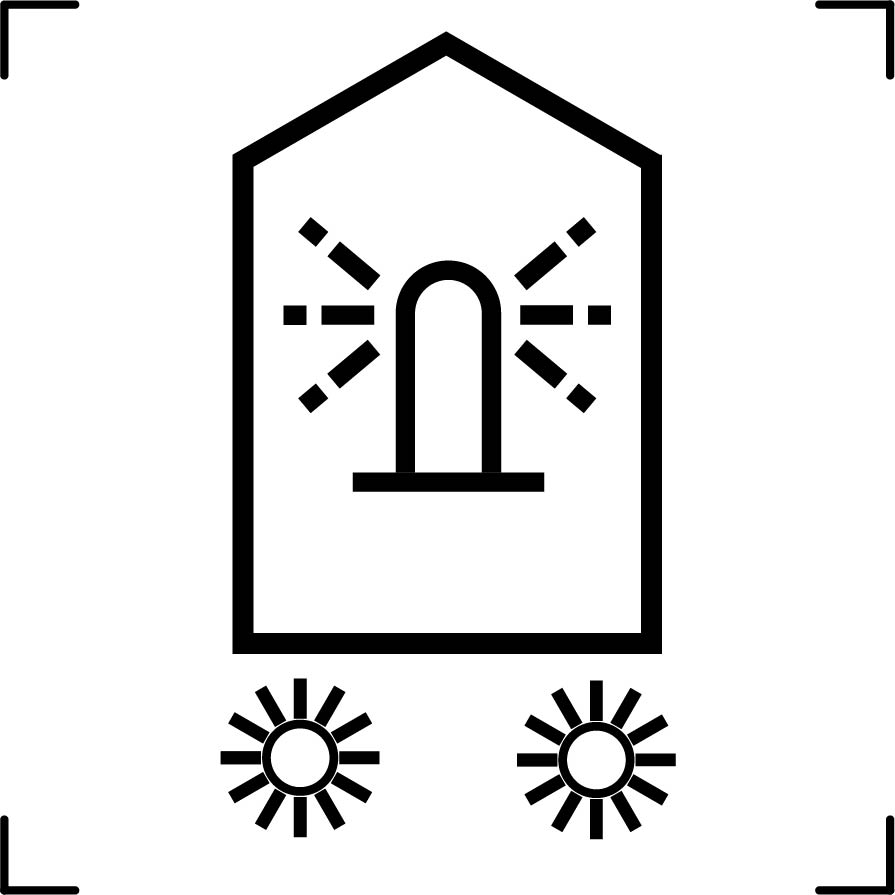

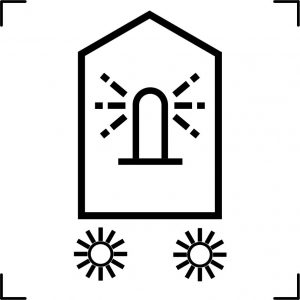

Warning Lights, Rear
|
None |
— |
|
17.41 |
|
|
Scene Lights, Front
|
None |
— |
|
17.42 |
|
|

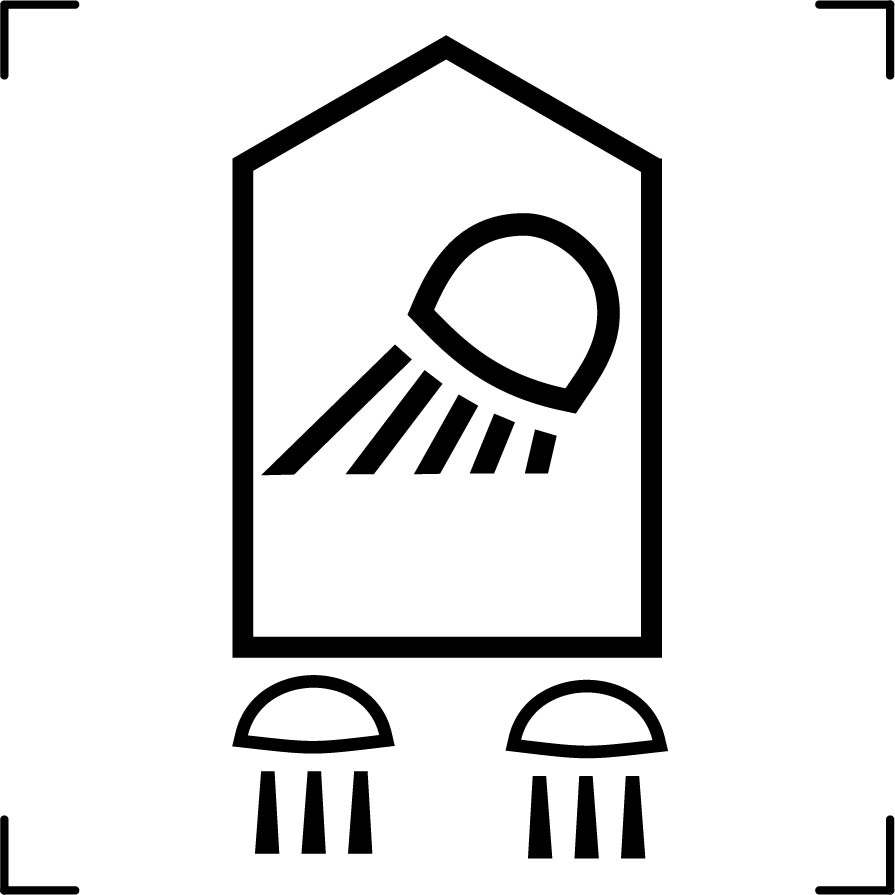

Scene Lights, Rear
|
None |
— |
|
17.43 |
|
|
Alley Light, Left Side
|
None |
— |
|
17.44 |
|
|
Alley Light, Right Side
|
None |
— |
|
17.45 |
|
|
Scene Lights, Left Side
|
None |
— |
|
17.45F |
|
|

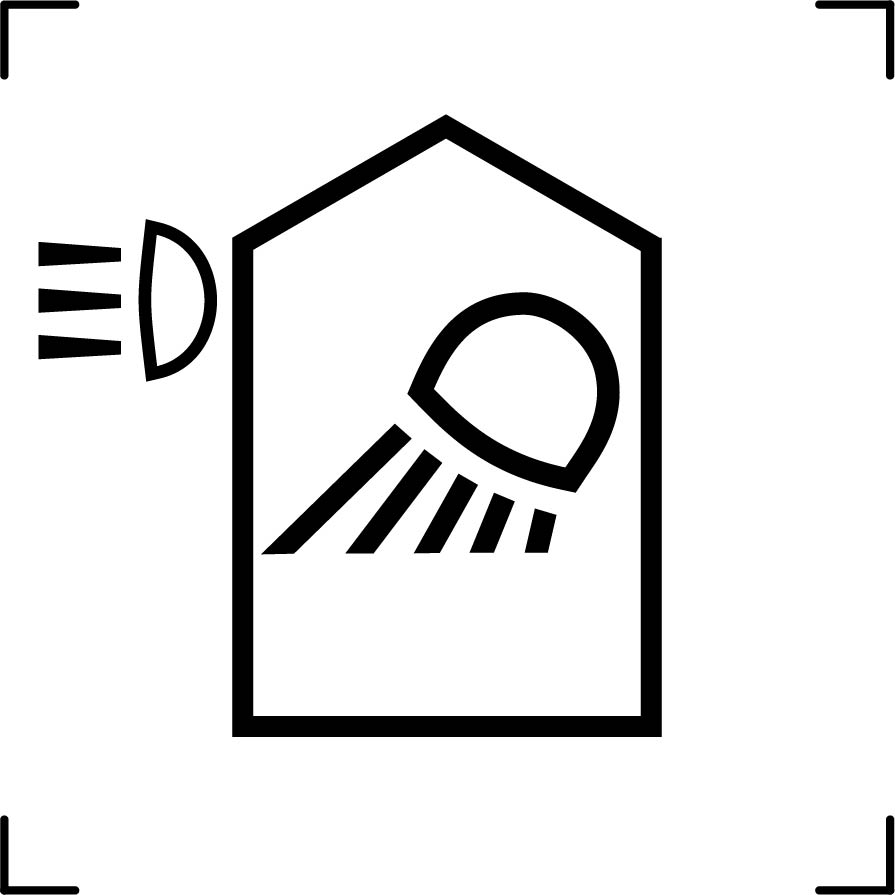

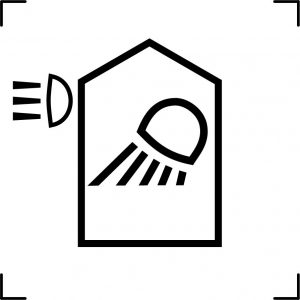

Scene Lights, Left, Front
|
None |
— |
|
17.45R |
|
|

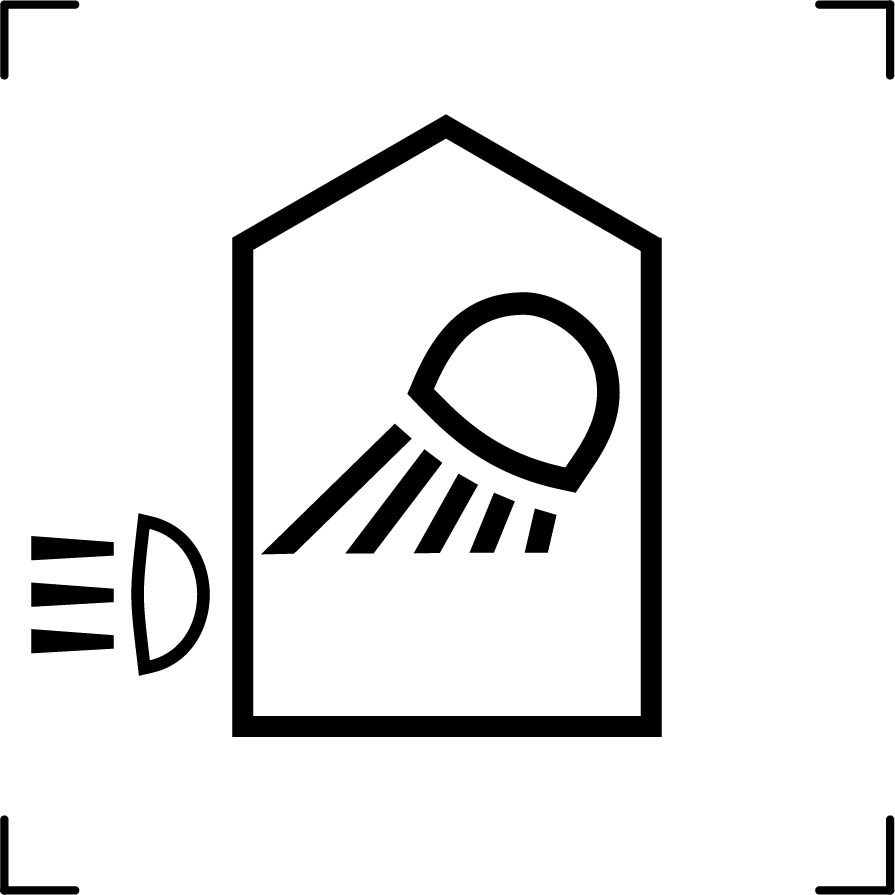

Scene Lights, Left, Rear
|
None |
— |
|
17.46 |
|
|
Scene Lights, Right Side
|
None |
— |
|
17.46F |
|
|

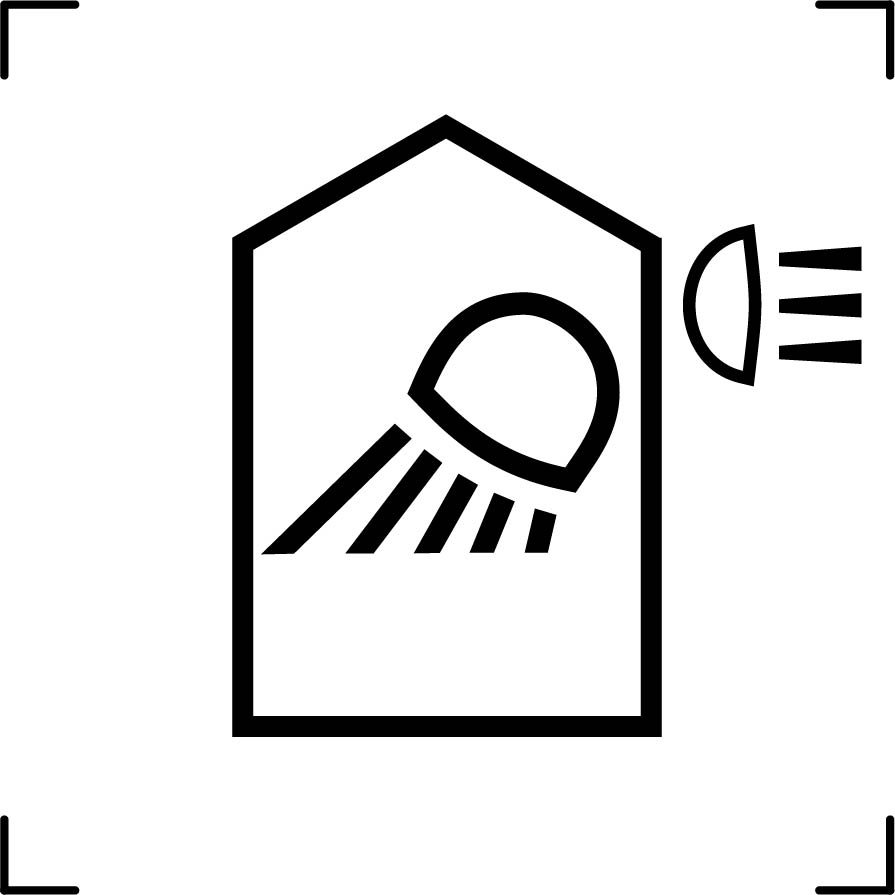

Scene Lights, Right, Front
|
None |
— |
|
17.46R |
|
|

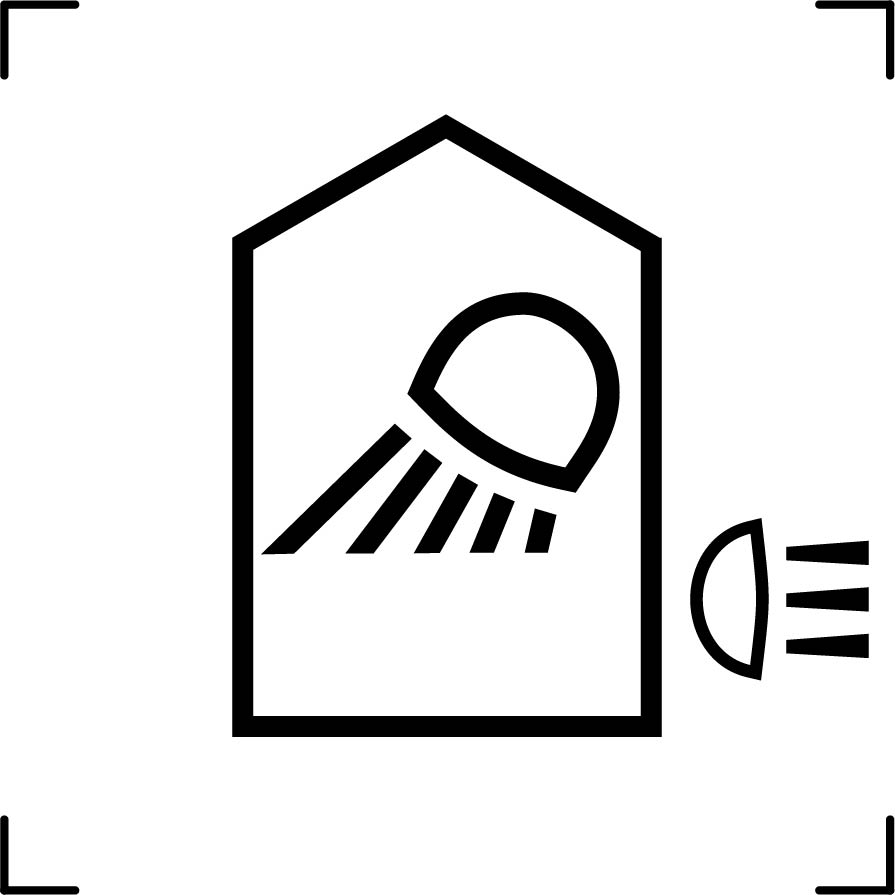

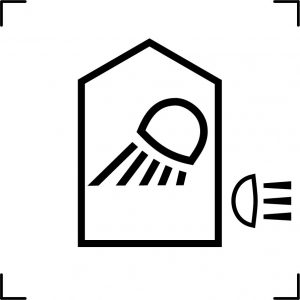

Scene Lights, Right, Rear
|
None |
— |
|
17.47 |
|
|

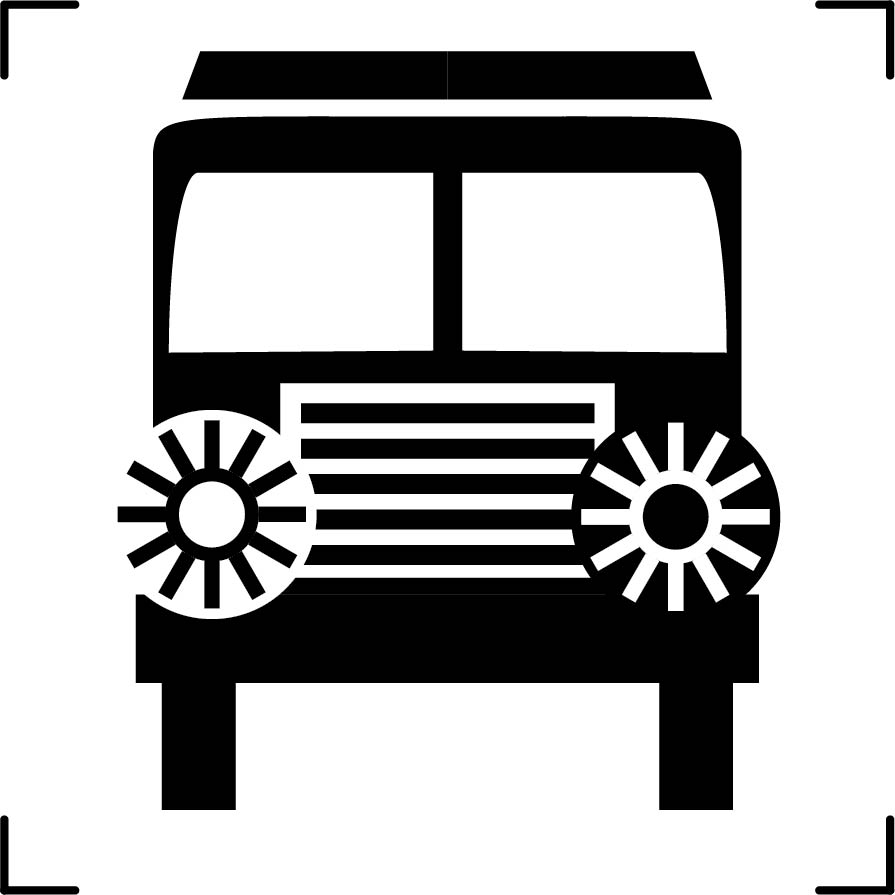

Headlamp Wig-Wag
|
None |
— |
|
17.48 |
|
|

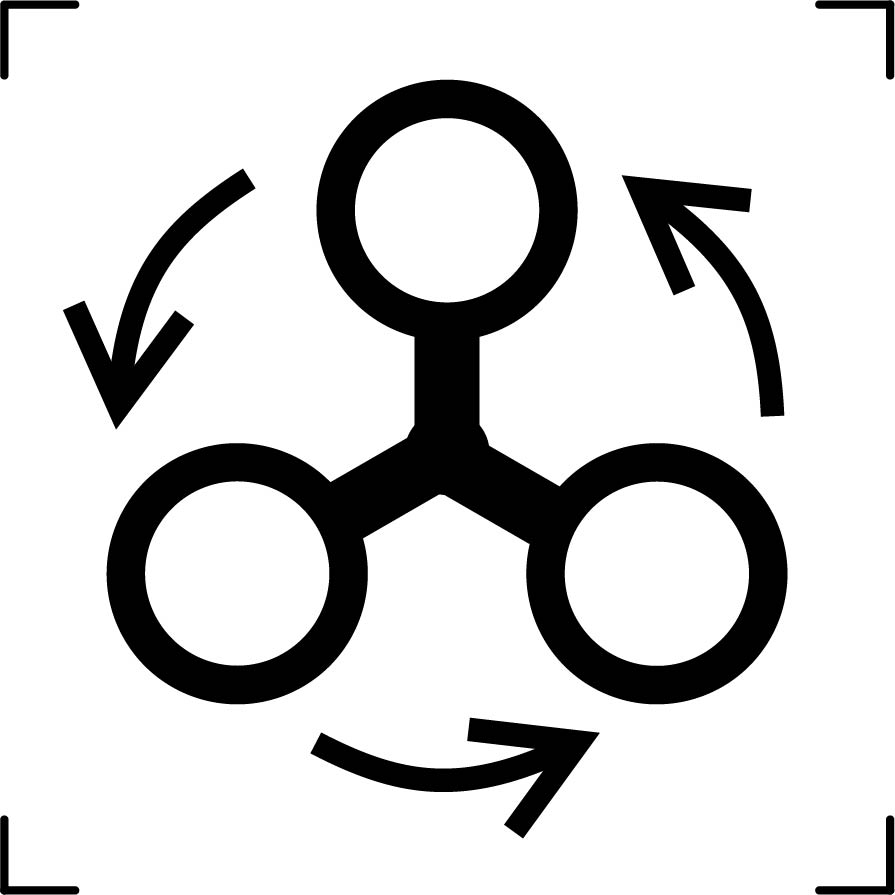

Warning Light, Mechanical Spinning
|
None |
— |
|
17.49 |
|
|
White Warning Lights OFF
|
None |
— |
|
17.50 |
|
|

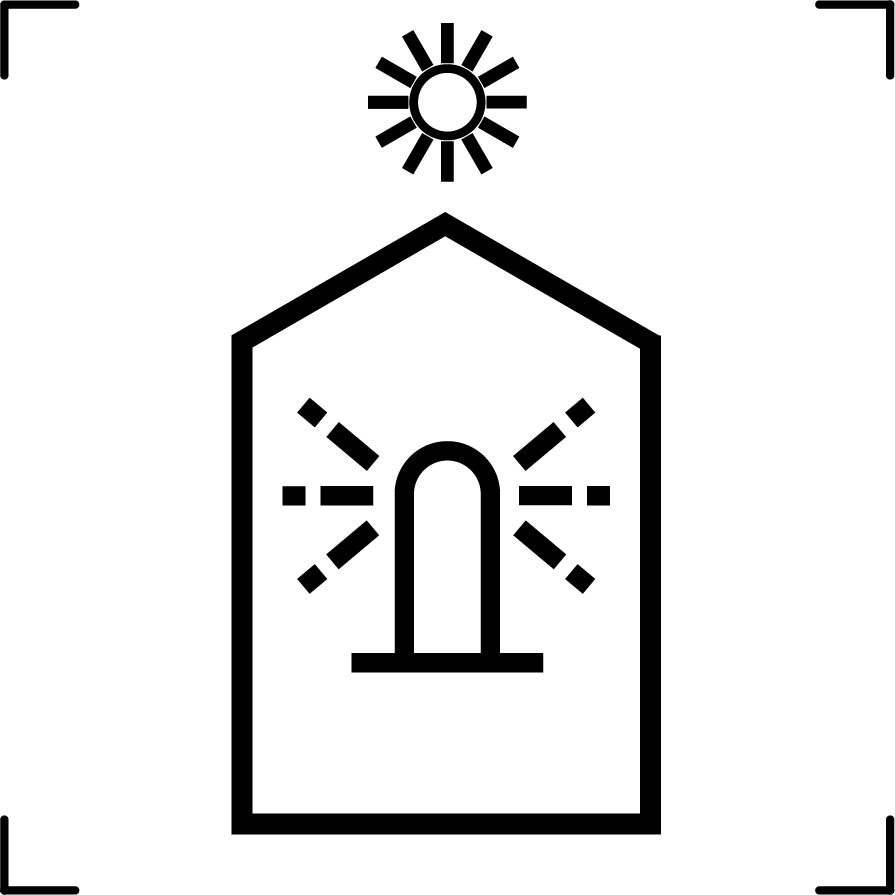

Warning Light, Single, Front
|
None |
— |
|
17.51 |
|
|
Compartment Light
|
None |
— |
|
17.52 |
|
|

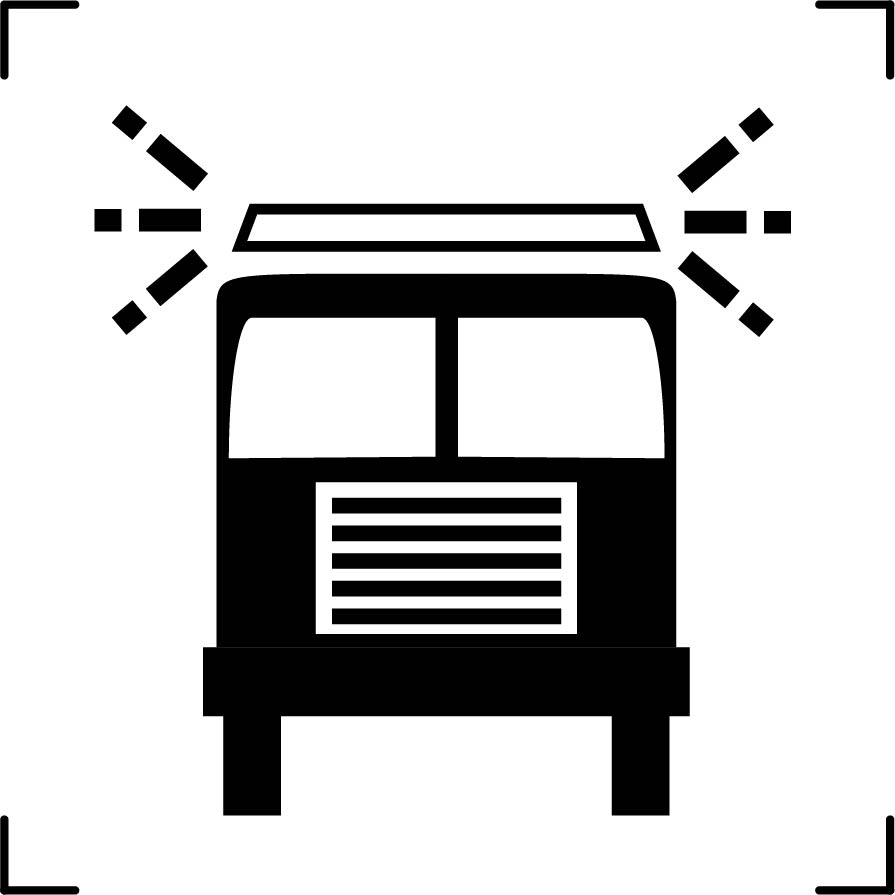

Light Bar
|
None |
— |
|
17.53 |
|
|

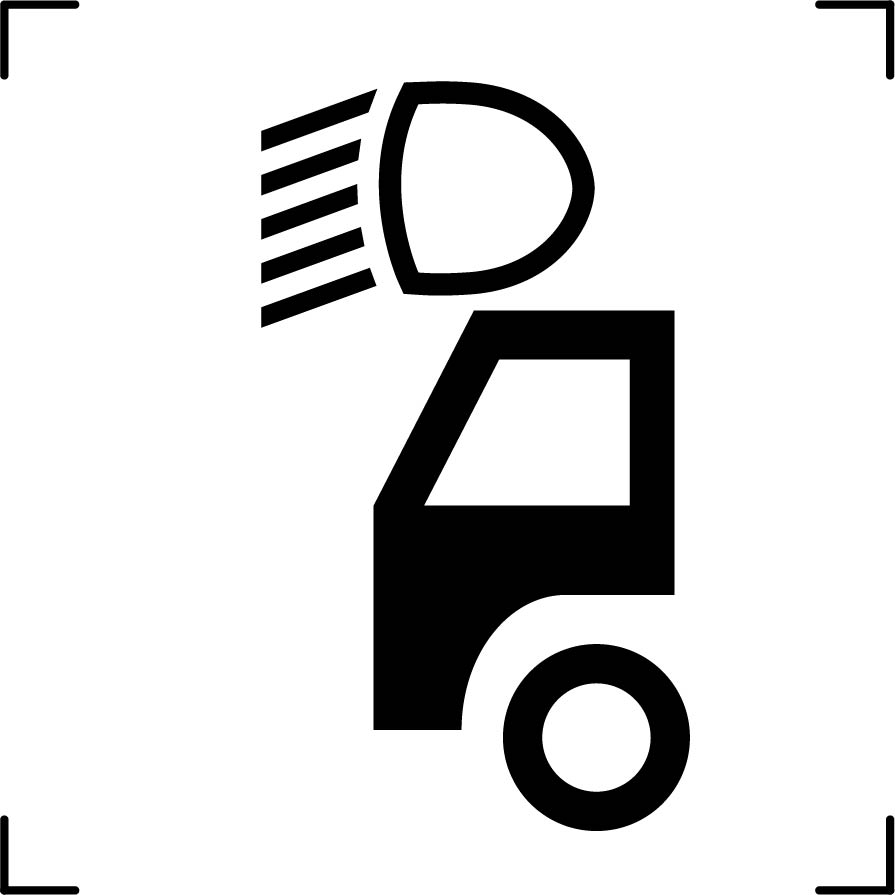

Brow Light Narrow Beam
|
None |
— |
|
17.54 |
|
|
Brow Light Wide Beam
|
None |
— |
|
17.55 |
|
|
Headlights Flashing
|
None |
— |
|
17.56 |
|
|
Docking Lights
|
None |
— |
|
17.57 |
|
|
Command Light, Green
|
None |
— |
|
17.58 |
|
|

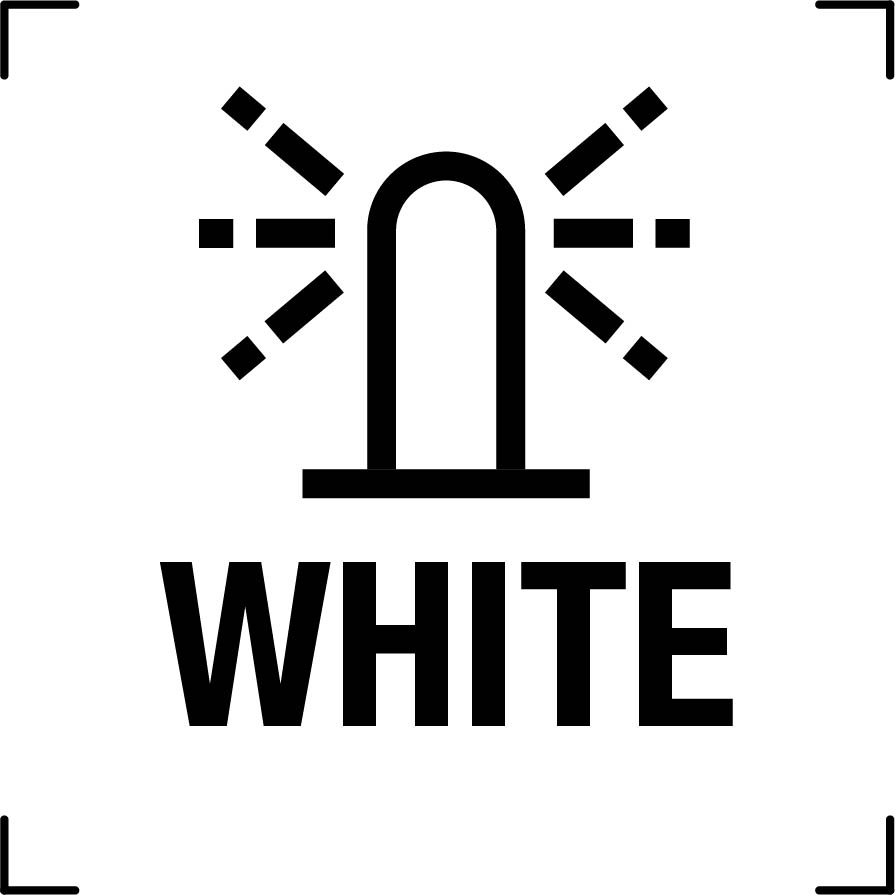

White Warning Lights
|
None |
--- |
|
17.59 |
|
|
Brow Light Spot Beam
|
None |
--- |
|
17.60 |
|
|
Rear Cab Scene
|
None |
--- |
|
17.61 |
|
|
Scene Light – PS Rear
|
None |
--- |
|
17.62 |
|
|
Scene Light – DS Rear
|
None |
--- |
|
17.63 |
|
|

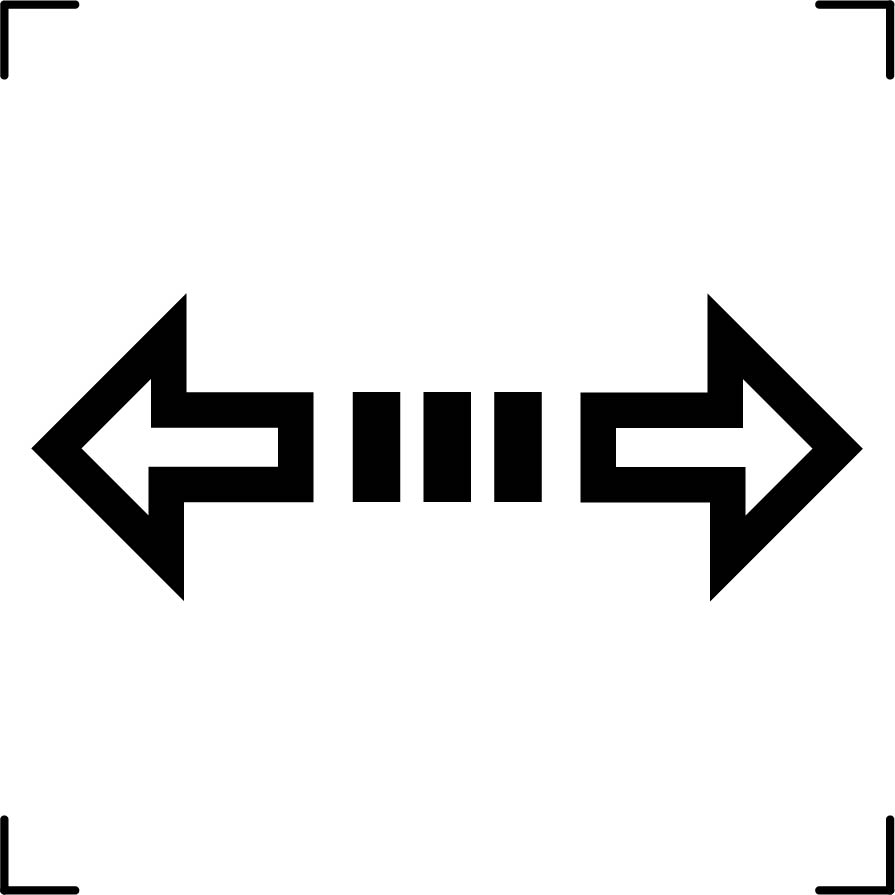

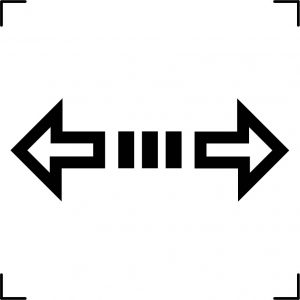

Traffic Advisor Stick Split
|
None |
--- |
|
17.64 |
|
|
Traffic Advisor Left
|
None |
--- |
|
17.65 |
|
|

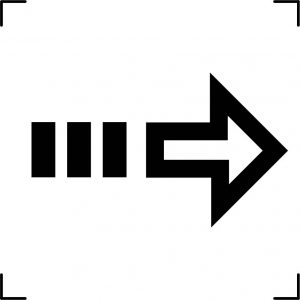

Traffic Advisor Right
|
None |
--- |
|
17.66 |
|
|

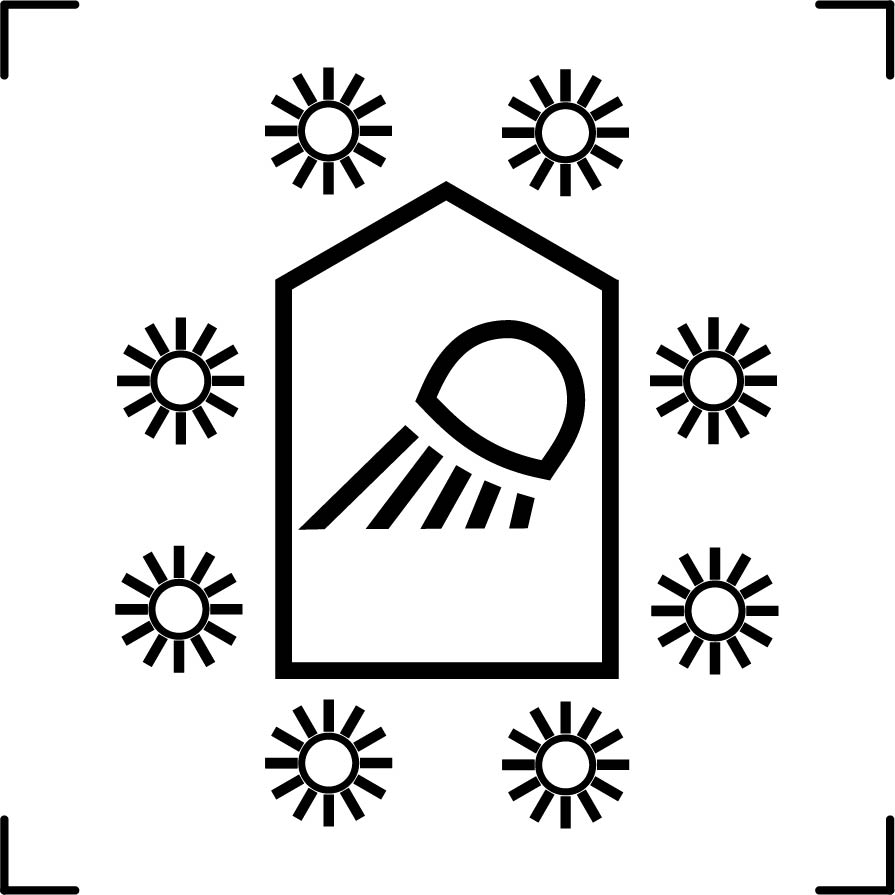

Scene Light Master
|
None |
--- |
